23 Mar 2023

Technics RS-B755 (RS-B755EG-K)




Specs
3 heads,
3 motor,
full logic,
4 digit counter,
Dolby B-C NR HX Pro, mpx,
Panasonic Pureism PX, Panasonic CE / SU components,
motorized tape loading,
cassette half stabilizer,
TNRC chassis,
No 20-18000Hz,
CrO2 20-19000Hz,
Me 20-20000Hz,
S/N 74dB (Dolby C),
W&F 0,05%,
mm 430x135x290, kg 5,3.


1 Jun 2022

Grundig CF 7200





Specs
horizontal tape loading,
2 heads (R/P: hard permalloy, E: double-gap ferrite),
2+2 motor,
3 digit linear counter,
Dolby B-C NR, mpx,
Rubycon, Unicon components,
dual core power transformer,
CrO2 30-18000 Hz,
S/N 55 dB (CrO2, Dolby off), 63 dB (CrO2, Dolby B), 69 dB (CrO2, Dolby C),
W&F (din) 0,1%,
mm 450x80x330, kg -,-.


7 May 2022

Sony CMT-SD1 (HCD-SD1, TC-SD1)





Specs
Sony CMT-SD1
|
Sony HCD-SD1 compact disc receiver
fm/am,
2x25W@6Ω/1kHz,
2x Sony LM3876TF amplifier chip (class AB),
2x3300µF filter caps,
Nichicon, Capxon components,
dig opt out,
1bit dac conversion,
Sony PCM1710U-R / CXD2507AQ dac / filter,
Sony CDM13B-5BD19 / KSS-213B/K-N transport / pickup,
ac outlet (switched),
Sony RM-SSD1 remote,
mm 190x91x315, kg 4,4.
|
Sony TC-SD1 cassette deck
2 heads,
1 DC motor,
Dolby B-C NR,
dual capstan, auto reverse,
motorized tape loading,
Capxon, Elna RE2, Nippon Chemicon SME, Shoei components,
ac outlet (unswitched),
No 30-14000 Hz ±3 dB,
CrO2 30-15000 Hz ±3 dB,
Me 30-15000 Hz ±3 dB,
S/N -- dB (Dolby off), -- dB (Dolby B), -- dB (Dolby C),
W&F < 0,07% (wrms),
mm 190x91x315, kg 3,2.
|
Sony MDS-SD1
Sony SA-CSD1


28 Apr 2022

Nakamichi 500







Specs
2 heads (R/P: crystal permalloy, E),
2 DC servo motor,
3 digit counter,
Dolby B NR, mpx,
Shoei components,
Focused Gap head,
Nakamichi RM-100 remote (optional),
CrO2 40-17000 Hz ±3 dB (din),
63 dB (Dolby on, CrO2),
W&F 0,08% (wrms),
mm 384x110x254, kg 7,0.


3 Mar 2022

Akai GXC-75D




Specs
3 heads (RP: GX),
1 synchro motor,
Elna, Nippon Chemicon SL, Towa components,
auto reverse,
3 digit counter,
OLS (limiter), Dolby NR,
No 30-14000 Hz ±3 dB,
CrO2 30-16000 Hz ±3 dB,
S/N > 58 dB (Dolby on),
W&F < 0,3% (wrms),
mm 460x146x302, kg 8,0.


1 Mar 2022

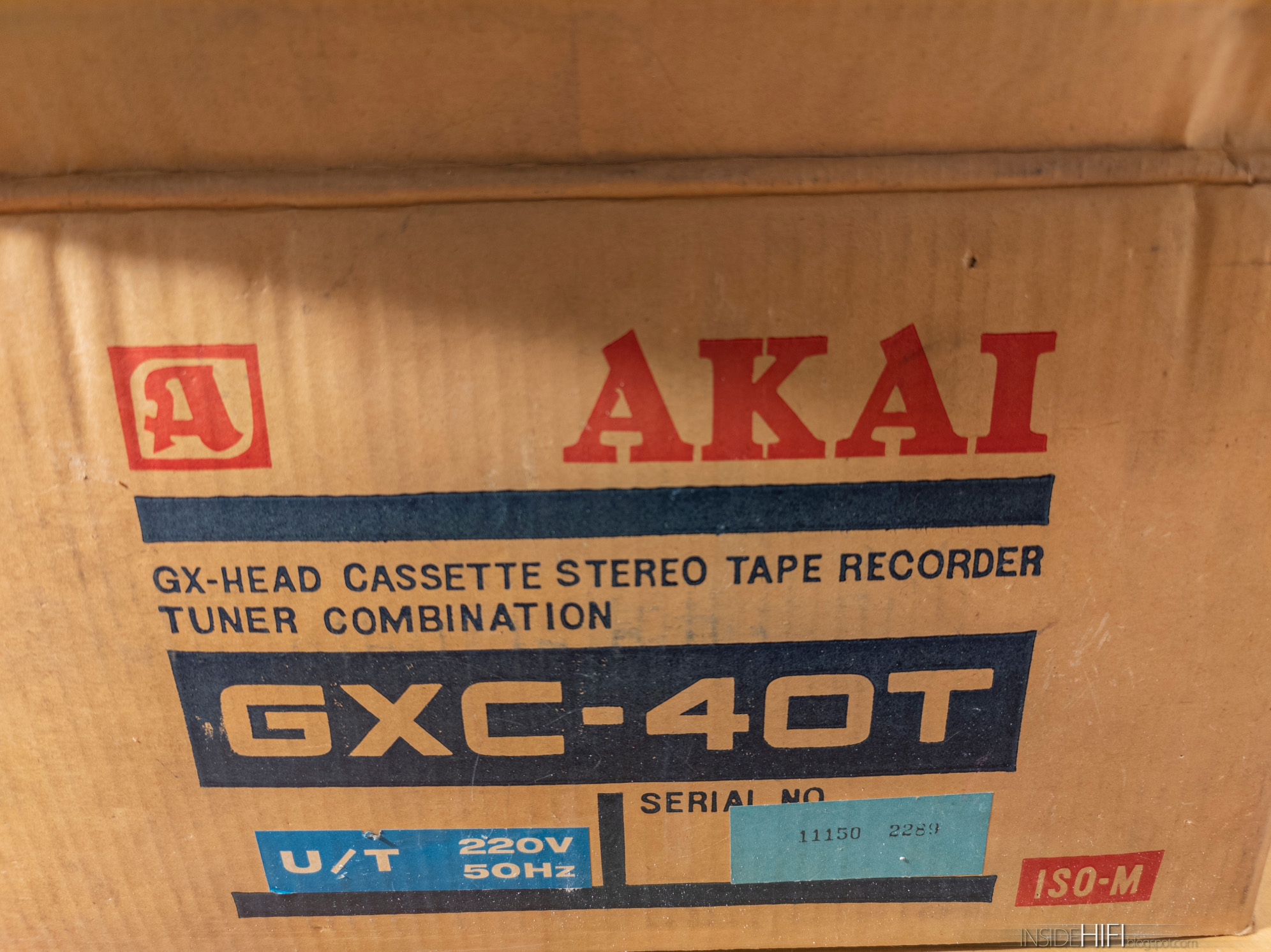

Akai GXC-40T




Specs
2x6W@8Ω/20-20000Hz,
Towa filter caps,
Nippon Chemicon SL, Towa components,
phono mm,
ukw/mw tuning,
mm 413x138x320, kg 8,2.
|
2 heads (RP: GX),
1 synchro motor,
3 digit counter,
OLS (limiter),
No 30-16000 Hz ±3 dB,
CrO2 30-18000 Hz ±3 dB,
S/N > 45 dB,
W&F < 0,2% (wrms).


16 Feb 2022

Pioneer CT-6R





Specs
2 heads (rp: sendust head),
3 motor,
full logic,
3 digit counter,
Dolby B-C NR, mpx,
L+R mic in,
ms, timer,
auto reverse,
Pioneer JT-216 wired remote (optional),
Elna, Nippon Chemicon SM / SL, Marcon, Unicon components,
No 30-15000 Hz ±3 dB,
CrO2 30-16000 Hz ±3 dB,
Me 20-20000 Hz (-20dB vu),
S/N 79 dB (Dolby C, 5 kHz),
W&F 0,04% (wrms),
mm 420x100x270, kg 5,3.


14 Feb 2022

Philips N 2407 (N2407/00)







Specs
2x10W@4Ω/20-20000Hz,
2x2 --- --- power transistors,
2x1500µF --- filter caps,
Nichicon, Philips components
|
2 heads,
1 motor,
3 digit counter,
DNL noise limiter,
No 60-10000 Hz,
CrO2 60-12000 Hz,
S/N > 47 dB (CrO2),
W&F < 0,25%,
mm 430x75x230, kg 5,0
|
Loudspeakers: Philips 22RH412


27 Jan 2022

B&O Beocord 5000 [Type 4705]





Specs
3 heads (Ferrite),
2 servo motors,
servo drive, dual capstan,
demagnetizer,
fade in/out, peak search, auto stop,
3 digit linear counter,
Dolby B NR,
mic in,
Roe components,
CrO2 30-15000 Hz (din),
S/N 56 dB (CrO2, Dolby off), 64 dB (CrO2, Dolby on),
W&F (din) 0,15%,
mm 470x80x280, kg 8,5.


10 Jan 2022

Telefunken RC 200



Specs
2 heads (R/P: sendust, E: ferrite),
2 DC motor,
3 digit counter,
High-Com (Dolby compatible), mpx,
mic in,
Nichicon components,
Me 30-18000 Hz,
S/N 74 dB,
W&F 0,16%,
mm 435x111x375, kg 8,1.


24 Sept 2021

Akai MX-H5

Specs
2 heads (rp: HD head),
DC motor,
4 digit counter,
Dolby B-C NR,
L+R mic in,
memory, repeat,
Akai RC-32 wired remote (optional),
Nippon Chemicon SM, Marcon components,
No 30-15000 Hz ±3 dB,
CrO2 30-16000 Hz ±3 dB,
Me 30-17000 Hz ±3 dB,
S/N 56 dB (Dolby off),
W&F 0,05% (wrms),
mm 350x98x267, kg -,-.
