19 Aug 2017

Teac A-H01 (A-H01S)







Specs
2x22W@8Ω/1kHz,
2x43W@4Ω/1kHz,
B&O ICEpower 50ASX2 power amp board (class D),
1x3300µF/35v Nippon Chemicon KMH el. cap,
smd components,
Elna RJ5, Panasonic, Tk components,
1 BurrBrown PCM5102 24bit/192kHz dac,
Tenor TE8802L usb receiver,
1 24bit/192kHz coax in,
1 24bit/96kHz opt in,
1 24bit/192kHz usb in,
2 rca analog in,
subwoofer pre out,
phones out,
Teac RC-1268 remote,
dynamic range --- dB,
mm 215x61x258, kg 1,60.


11 Sept 2016

Teac W-860R




Specs
2 heads (deck I*/deck II°),
1 DC servo motor*°,
full logic,
auto reverse*°, parallel rec,
Dolby B-C NR HX Pro,
mic in,
Teac RC-615 remote,
4 digit counter,
pitch control ±10%,
Yec components,
No 25-17000 Hz (-20dB vu),
CrO2 25-18000 Hz (-20dB vu),
Me 25-19000 Hz (-20dB vu),
S/N 59 dB (Dolby off), 69 dB (Dolby B, 5 kHz), 79 dB (Dolby C, 1 kHz),
W&F 0,09% (wrms),
mm 435x127x292, kg 4,0.


11 Jul 2016

Teac CX-400








Specs
3 heads (Ferrite HD),
1 DC servo motor,
3 digit linear counter,
Dolby NR,
L+R mic in,
peak hold,
Marcon components,
30-20000 Hz,
S/N 47 dB (Me, Dolby off), 52 dB (Me, Dolby NR, 1 kHz), 57 dB (Me, Dolby NR, 5 kHz),
W&F (wrms) 0,10%,
mm 410x142x300, kg 6,1.


27 Jun 2016

Teac DV-H500



Specs
DVD-V, VCD, CD-A,
video dac 10bit/27MHz (ST Omega-DVD STi5505 32bit chip),
audio dac 24bit/96kHz (BurrBrown PCM1600Y 6ch),
DD, TruSurround,
Samwha SD / SG / HC components,
JRC 2068D op amps,
Teac RC-766 remote,
S/N 105 dB (EIAJ),
dynamic range 92 dB (EIAJ),
CD 2-22000 Hz,
harmonic distortion 0,008%,
mm 285x131x292, kg 3,9.


10 Apr 2016

Teac A-R610







Specs
2x90W@8Ω/1kHz,
2x120W@4Ω/1kHz,
2x2 Sanken A1386A C3519A power transistors,
2x10000µF Koshin KPO filter caps,
Koshin components,
source direct,
phono mm,
ac outlet (switched),
Teac UR-592B remote,
mm 430x142x355, kg 9,7.


9 Oct 2015

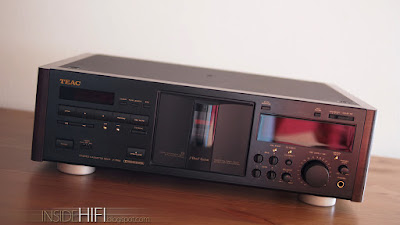

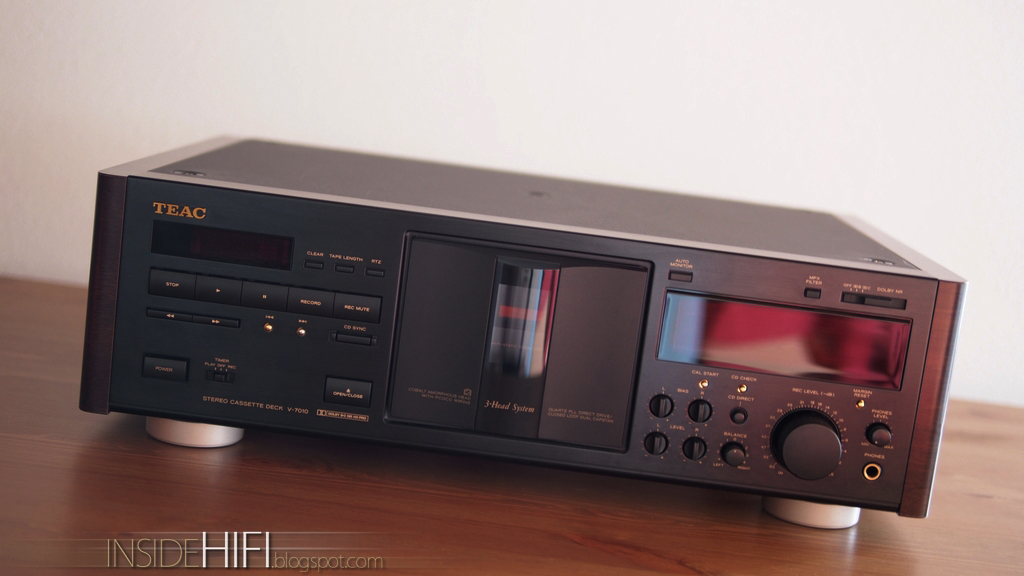

Teac V-7010












Specs
3 heads (cobalt-amorphous),
4 DC motor (1 brushless quartz locked PLL servo),
full logic,
Teac RC-394 remote,
4 digit counter,
Dolby B-C NR HX Pro, mpx,
motorized tape loading,
anti-static stabilizer,
Panasonic AU, Panasonic Pureism components,
No 15-18000 Hz ±3 dB (-20dB vu),
CrO2 15-20000 Hz ±3 dB (-20dB vu),
Me 15-21000 Hz ±3 dB (-20dB vu),
S/N 60 dB (Dolby off), 70 dB (Dolby B, 5 kHz), 80 dB (Dolby C, 1 kHz),
W&F 0,022% (wrms),
mm 472x149x355, kg 9,8.


7 Aug 2015

Teac RW-D250








Specs
double cd deck (deck 1*: P; deck 2°: R/P),
24bit 32/44,1/48kHz adc,
audio cd-r/rw, cd-text, HDCD, 2x dubbing,
1analog/1opt/1coax in,
1analog/1opt/1coax out,
24bit* / 16bit° dac,
CD11FT* / Sanyo SF-P101-N*, CRD-RA1W02° / Sanyo SF-W03PDX° transport / pickup,
JRC 4558D op amps,
Licon components,
Teac RC-781 remote,
S/N 92 dB,
dynamic range 92 dB,
20–20000 Hz ± 1,5 dB,
harmonic distortion 0,1%,
mm 435x102x320, kg 5,1.
