7 May 2022

Sony CMT-SD1 (HCD-SD1, TC-SD1)





Specs
Sony CMT-SD1
|
Sony HCD-SD1 compact disc receiver
fm/am,
2x25W@6Ω/1kHz,
2x Sony LM3876TF amplifier chip (class AB),
2x3300µF filter caps,
Nichicon, Capxon components,
dig opt out,
1bit dac conversion,
Sony PCM1710U-R / CXD2507AQ dac / filter,
Sony CDM13B-5BD19 / KSS-213B/K-N transport / pickup,
ac outlet (switched),
Sony RM-SSD1 remote,
mm 190x91x315, kg 4,4.
|
Sony TC-SD1 cassette deck
2 heads,
1 DC motor,
Dolby B-C NR,
dual capstan, auto reverse,
motorized tape loading,
Capxon, Elna RE2, Nippon Chemicon SME, Shoei components,
ac outlet (unswitched),
No 30-14000 Hz ±3 dB,
CrO2 30-15000 Hz ±3 dB,
Me 30-15000 Hz ±3 dB,
S/N -- dB (Dolby off), -- dB (Dolby B), -- dB (Dolby C),
W&F < 0,07% (wrms),
mm 190x91x315, kg 3,2.
|
Sony MDS-SD1
Sony SA-CSD1


18 Jul 2020

Tannoy System 800





Specs
2-way configuration,
bass reflex via front-firing ports,
PP cone 8" full range dual concentric Tannoy Type 2046, rubber surround,
60-180W@8Ω,
47-20000Hz ±3 dB,
sens. 92 dB,
mm 275x450x267, kg 10,5.


24 Sept 2017

B&W DM603 S1







Specs
2-way configuration,
bass reflex via front-firing port,
woven Kevlar cone midwoofer B&W ZZ10129 180mm, die cast frame, rubber surround,
Cobex cone passive radiator B&W ZZ10073 180mm, die cast frame, rubber surround,
metal dome tweeter B&W ZZ10111 26mm,
25-120W@8Ω,
47-20000Hz ±3 dB,
sens. 90 dB,
mm 236x850x306, kg 17,3.


5 Aug 2017

Denon PMA-425R




Specs
2x45W@8Ω/20-20000Hz,
2x2 Rohm A1633 C4278 power transistors,
2x8200µF Elna filter caps,
Acon, Elna components,
Denon RC-176 remote,
phono mm,
mm 434x120x282, kg 6,0.


15 Jun 2017

Sony TA-VE150







Specs
25Wx5@8Ω/1kHz,
5x Sanken SI18752 power ic,
2x4700µF Nippon Chemicon SME filter caps,
Nichicon VR / VX, Elna components,
DPL decoder,
Sony RM-U150 remote,
mm 430x65x274, kg 4,6.


30 Sept 2016

Yamaha TX-592RDS




Specs
am/fm,
40 preset,
Panasonic SU components,
mm 435x86x289, kg 3,2.


23 Sept 2016

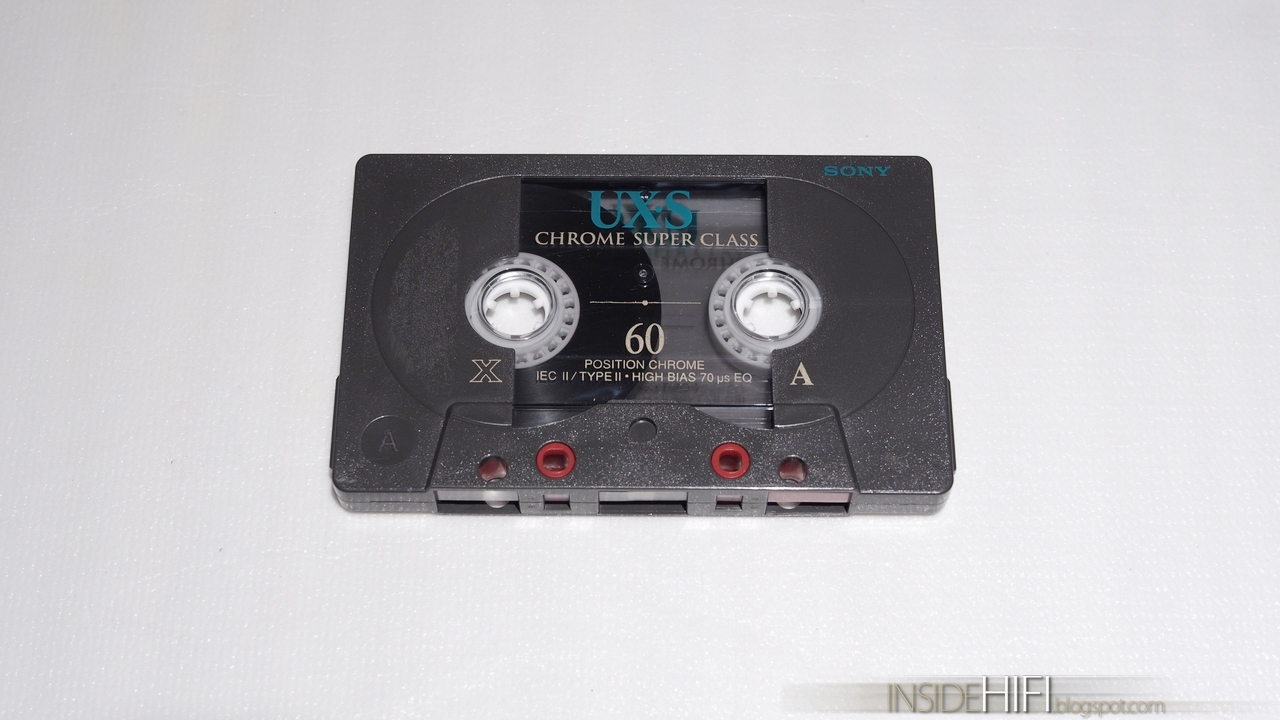

Sony UX-S (1998) (outside only)








Specs
IEC II tape
60 mins

14 Nov 2015

Sony MDS-JE520






Specs
20bit Hybrid Pulse dac,
20bit Delta Sigma adc,
Sony CXD8607N dac / filter,
Sony MDM-5A / Sony KMS-260A/J1N transport / pickup,
Nippon Chemicon ASF / W, Elna components,
ATRAC 4.5, Wide Bit Stream,
1 analog / 1 opt / 1 coax in,
1 analog / 1 opt out,
L/R digital level meter,
Sony RM-D15M remote,
S/N > 96 dB,
dynamic range > 97 dB,
channel separation > 100 dB,
5–20000 Hz ± 0,3 dB,
harmonic distortion < 0,004%,
mm 430x95x280, kg 3,4.


25 Oct 2015

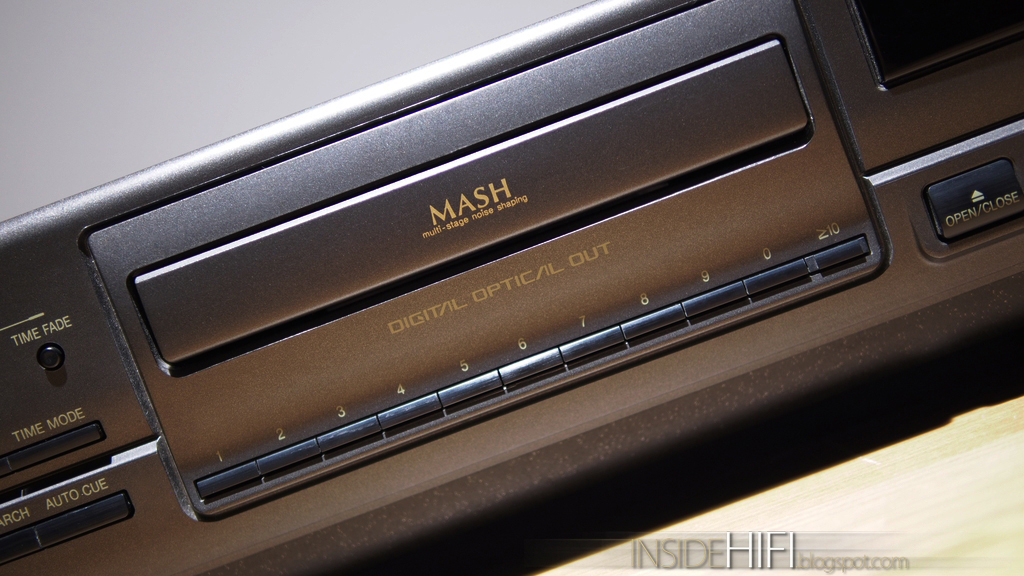

Technics SL-PG590 (SL-PG590EG-K)







Specs
 1 dac 1bit MASH conversion,
Panasonic MN662713RG1 dac / filter,
Panasonic RAE1100Z / Philips VAM1201, Philips CDM 12.1/15 transport / pickup,
Panasonic SU / KA components,
THCB base,
Panasonic EUR643900 remote,
S/N > 100 dB,
dynamic range > 96 dB,
channel separation > *** dB,
2–20000 Hz ± 0,5 dB,
harmonic distortion < 0,004%,
mm 430x103x283, kg 3,6.


30 Mar 2015

Fuji KII (1998) (outside only)









Specs
IEC II tape
90 mins
