21 Jan 2018

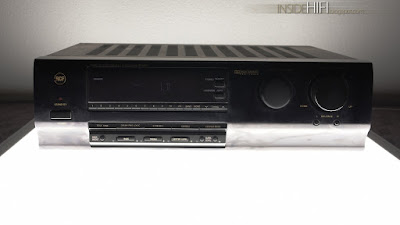

RCF MHAS3



Specs
--Wx5@8Ω/20-20000Hz,
3x ST TDA7296, 4x D998 power transistors,
2x10000µF Devcon filter caps,
KHC, JEC components,
DPL codec,
AnalogDevices SSM-2126A,
toroidal power transformer,
fm/am tuning,
mm 410x110x310, kg -,-.
Similar: Daewoo AHT-2000.


9 Sept 2017

Sony TA-FE230






Specs
2x55W@8Ω/20-20000Hz,
STK4192II power(pack) ic,
2x6800µF Nippon Chemicon filter caps,
Jamicon SK components,
phono mm,
mm 430x130x310, kg 5,2.


6 Aug 2017

Kenwood VH700 (RD-VH7, X-VH7) (outside only)









Specs
Kenwood VH700
|
Kenwood RD-VH7 cd/receiver
class A / AB,
fm/am,
hdcd,
2x20W@6Ω/1kHz,
1x STK499-090 power(pack) ic,
2x3300µF Elna for Kenwood filter caps,
Elna components,
Kenwood RC-RP0702E remote,
aux in,
subwoofer pre out,
opt out,
--- dac / filter,
CDM34 transport / pickup,
S/N ≥ -- dB,
dynamic range ≥  96 dB,
channel separation ≥ -- dB (1 kHz),
4–20000 Hz ± -,- dB,
harmonic distortion ≤ 0,01%,
mm 247x96x291, kg 4,0.
|
Kenwood X-VH7 cassette deck
2 heads,
1 motor,
Dolby B-C NR,
dpss,
Elna components,
No 40-18000 Hz ±3 dB,
CrO2 40-19000 Hz ±3 dB,
S/N 60 dB (Dolby off), 67 dB (Dolby B), 73 dB (Dolby C),
W&F  < 0,15% (wrms),
mm 247x96x279, kg 3,2.


25 Sept 2016

Denon DRM-555




Specs
2 heads (R/P, E: double gap Ferrite head),
2 DC motor,
full logic,
auto reverse, cd synchro, memory stop,
4 digit counter,
Dolby B-C NR HX Pro, mpx,
JJ components,
Me 20-17000 Hz ±3 dB (-20dB vu),
S/N 74 dB (Dolby C),
W&F 0,08% (wrms),
mm 434x135x270, kg 3,6.


11 Sept 2016

Teac W-860R




Specs
2 heads (deck I*/deck II°),
1 DC servo motor*°,
full logic,
auto reverse*°, parallel rec,
Dolby B-C NR HX Pro,
mic in,
Teac RC-615 remote,
4 digit counter,
pitch control ±10%,
Yec components,
No 25-17000 Hz (-20dB vu),
CrO2 25-18000 Hz (-20dB vu),
Me 25-19000 Hz (-20dB vu),
S/N 59 dB (Dolby off), 69 dB (Dolby B, 5 kHz), 79 dB (Dolby C, 1 kHz),
W&F 0,09% (wrms),
mm 435x127x292, kg 4,0.


30 Aug 2016

Dynaudio Audience 50











Specs
2-way configuration,
bass reflex via rear-firing port,
PP cone woofer Dynaudio 17W75 170mm, rubber surround, 75mm aluminium wire voice coil,
soft dome tweeter Dynaudio D260 28mm, aluminium wire voice coil,
25-150W@4Ω,
46-27000Hz ±3 dB,
sens. 86 dB,
mm 204x330x256, kg 6,9.


15 Aug 2016

Dynaudio Audience 40











Specs
2-way configuration,
bass reflex via rear-firing port,
PP cone woofer Dynaudio 15W75 150mm, rubber surround, 75mm aluminium wire voice coil,
soft dome tweeter Dynaudio D260 28mm, aluminium wire voice coil,
25-150W@4Ω,
53-28000Hz ±3 dB,
sens. 86 dB,
mm 170x282x246, kg 4,8.


25 Jul 2016

Pioneer CT-W208R





Specs
1 head (deck I*; P: hard permalloy), 2 head (deck II°; R/P: hard permalloy; E: ferrite),
2 DC servo motor*°,
full logic,
auto reverse*°, high speed synchro copy,
Dolby B-C NR,
Nippon Chemicon SMG, Nichicon, Elna components,
ms (up to ±15 track search),
No 20-16000 Hz (-20dB vu),
CrO2 20-16000 Hz (-20dB vu),
Me 20-16500 Hz (-20dB vu),
S/N 57 dB (Dolby off), 67 dB (Dolby B, 5 kHz), 76 dB (Dolby C, 5 kHz),
W&F 0,09% (wrms),
mm 420x125x250, kg 3,9.
