13 May 2020

B&W 805 D2 (805 Diamond)










Specs
2-way configuration,
bass reflex via front-firing port,
woven Kevlar cone midwoofer B&W LF02336 165mm,
(die cast frame, rubber surround, aluminum phase plug),
diamond dome tweeter B&W HF00959 (ZZ14388) 25mm,
(time-aligned, free-mounted, quad magnet),
50-120W@8Ω,
49-28000Hz ±3 dB, -6 dB@42Hz,
sens. 88 dB,
multi-cell Matrix structure,
mm 238x418x351, kg 12,0.
|
Stands: B&W FS-805


13 Jan 2016

REBsound Tubook










Specs
2x30W@8Ω/20-20000Hz,
General Electric ECC86 tube,
1 Tripath TK2050 chipset (Tripath TC2001 + Tripath TP2050)(class T),
41Hz Amp4 power amp board,
2x10000µF/35v Panasonic CE el. caps,
smd components,
Mundorf MCap, Panasonic FM / CE, Nippon Chemicon KZE, Nichicon, Yec components,
Alps RK27 Blue volume pot,
1 dac 16bit/48kHz conversion,
1 usb in,
3 rca analog in,
1 3,5mm jack analog in,
lacquered wood case,
dynamic range 100 dB,
mm 70x190x175, kg 1,25.


4 Dec 2015

Audiolab M-DAC









Specs
  1 dac 32bit/84MHz conversion,
ESS 9018S (Sabre32) dac,
7 digital filter,
TI N5532, NE5534 op amps,
Lelon, Evox, Wima components,
2 24bit/192kHz coax in,
2 24bit/96kHz opt in,
1 24bit/96kHz usb in,
1 rca / 1 xlr analog out,
1 coax / 1 opt out,
phone out,
L/R digital level meter,
pre / dac mode,
remote,
external power supply,
dynamic range > 115 dB (rca), > 122 dB (xlr),
20–20000 Hz ± 0,2 dB,
thd < 0,002% (rca), < 0,0008% (xlr),
mm 250x59x252, kg 4,95.


9 Jul 2013

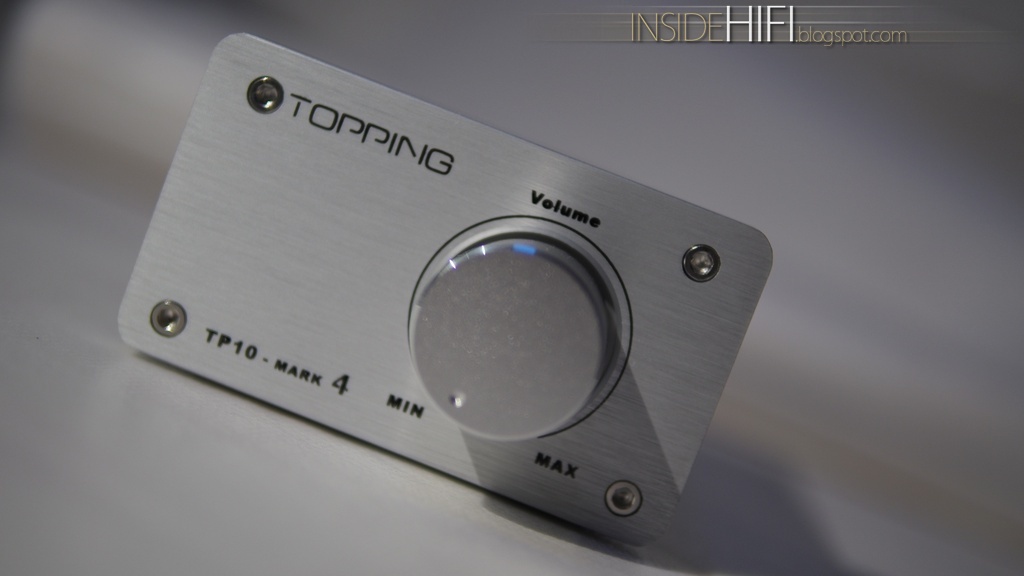

Topping TP10-mark 4












Specs
2x10W@8Ω/20-20000Hz,
2x15W@4Ω/20-20000Hz,
1 Tripath TA2024 stereo amplifier chip (class T),
2x220µF/35v Nichicon FW el. caps,
smd components,
Nichicon FW, Elna, Dale components,
dynamic range 98 dB,
mm 90x50x162, kg 0,45.
