27 Jul 2014

Philips CD 165






Specs
bitcheck conversion,
TDA1545A – SAA7345GP dac / filter,
Philips CDM12.1 (CDM12.1/05) transport / pickup,
TL072CN op amp,
Nichicon, Panasonic, Philips, Elna components,
S/N ≥ 90 dB,
dynamic range ≥ 85 dB,
channel separation ≥ 82 dB,
20-20000 Hz ± 0,5 dB,
harmonic distortion ≤ 0,0***%,
mm ***x***x***, kg 2,5.


Teac V-70C







Specs
2 heads (RP: permalloy),
2 DC motor,
IC logic,
RC-90 remote control (optional),
4 digit counter,
Dolby B-C NR,
Nippon Chemicon SM / LL components,
No **-**000 Hz ±* dB,
CrO2 **-**000 Hz ±* dB,
Me 20-19000 Hz ±* dB,
S/N 59 dB (Dolby off), 74 dB (Dolby C, 5 kHz),
W&F 0,035% (wrms),
mm 432x108x264, kg 6,0.


24 Jul 2014

Technics SL-QX200 (SL-QX200-SEi)










Specs
33⅓ / 45 rpm direct drive,
quartz servo control,
brushless DC motor,
die cast aluminum injection platter, ø 312mm,
rubber platter mat,
statically-balanced straight tonearm, 230mm, 7,5g (without cartridge),
T4P plug-in connector (P-mount),
Panasonic SU, TK components,
semi automatic,
stroboscope,
stylus adjustment 1,0 - 1,5 g,
pitch control ±6%,
wow & flutter 0,012%,
mm 430x100x380, kg 5,9.
|
Cartridge: Ortofon OMP-5E
Original cartridge: Technics EPC-P33

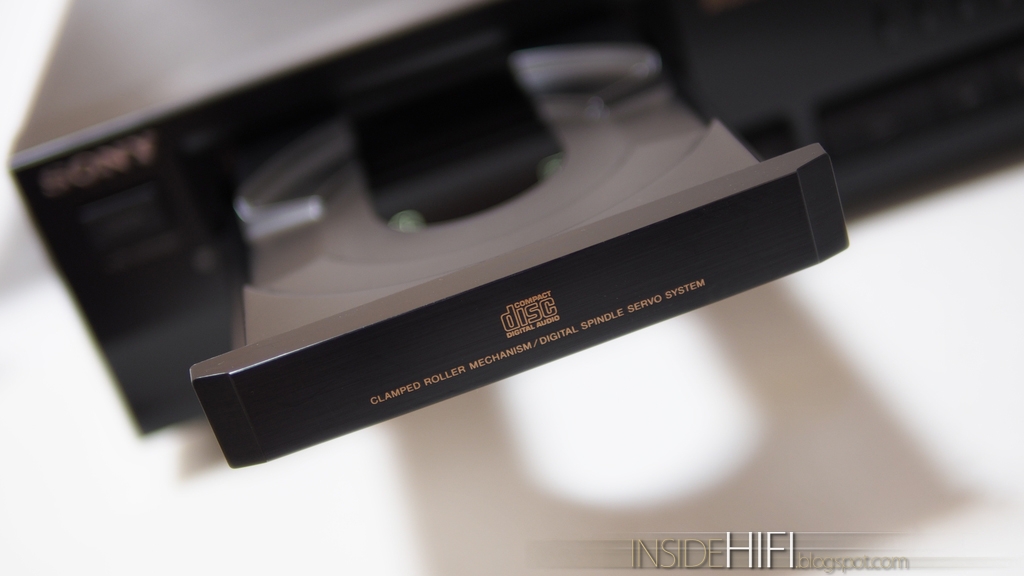

Sony CDP-415






Specs
1bit Pulse conversion,
CXD2565M – CXD2515Q dac / filter,
Sony KSS-240A transport / pickup,
  4565D op amp,
Nippon Chemicon SME, Nichicon, Rubycon components,
S/N ≥ 102 dB,
dynamic range ≥ 98 dB,
channel separation ≥ 100 dB,
2–20000 Hz ±0,5 dB,
harmonic distortion ≤ 0,0035%,
mm 430x110x295, kg 3,7.


20 Jul 2014

Sony CDP-597





Specs
1bit Pulse conversion,
CXD2561AM – CXD2560M dac / filter,
Sony KSS-240A transport / pickup,
  TL082CP,  RC4558P op amp,
Elna components,
S/N ≥ 105 dB,
dynamic range ≥ 98 dB,
channel separation ≥ 102 dB,
2–20000 Hz ±0,5 dB,
harmonic distortion ≤ 0,003%,
mm 430x110x280, kg 3,7.


15 Jul 2014

Rotel RTC-970








Specs
fm/mw,
tuning presets,
Rubycon, Nippon Chemicon SME / KME components,
4558D, 5532D op amp,
surround processor,
Analog Devices SSM-2126A DPL codec,
Rotel RR-970 remote,
5.1 pre out,
switched ac outlets,
mm 440x121x337, kg 5,8.
