13 Oct 2020

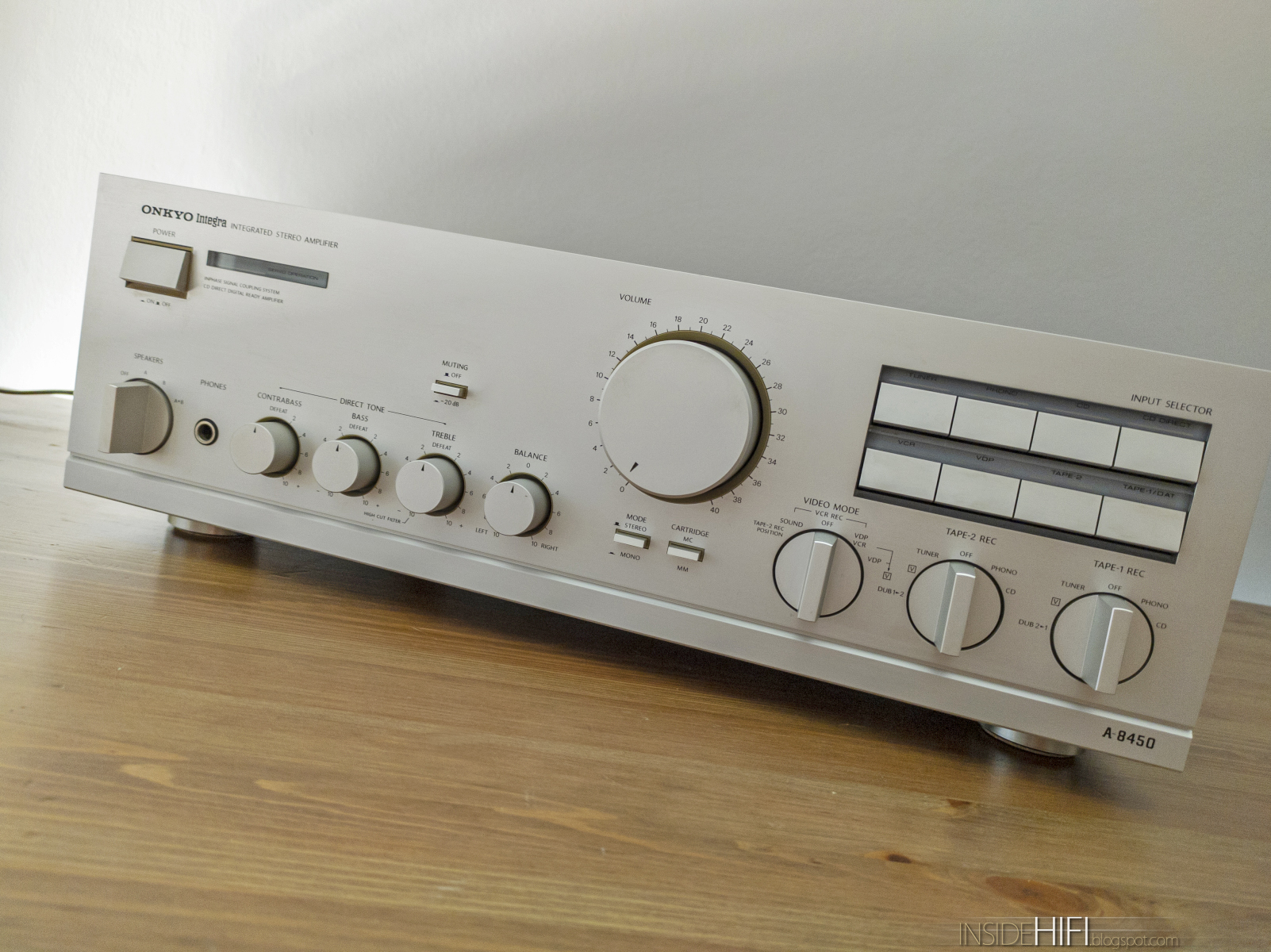

Onkyo A-8450




Specs
80Wx2@8Ω/20-20000Hz,
2x2 Sanken 2SA1493 2SC3857 power transistors,
2x12000µF Onkyo Integra (Nichicon) filter caps,
Nichicon VX / Muse components,
cd direct,
phono mm / mc,
mm 435x147x388, kg 11,2.


25 Aug 2017

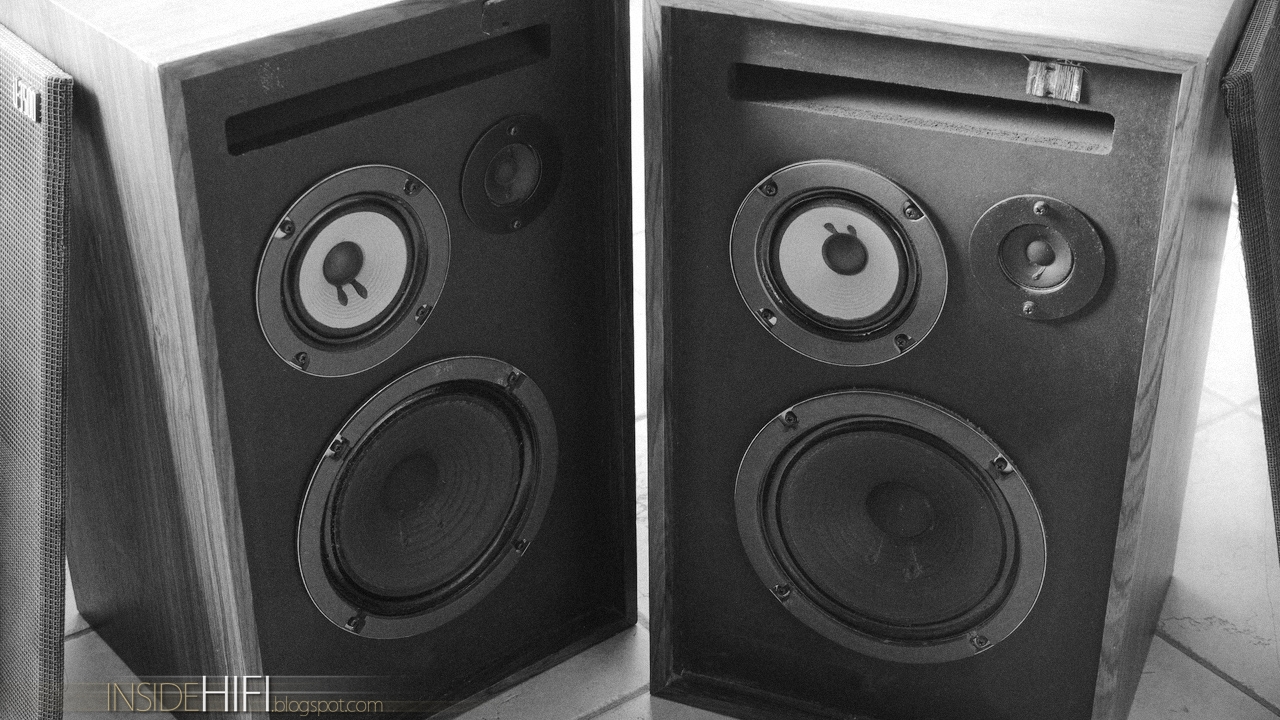

Onkyo U-3500








Specs
3-way / 3 speakers configuration,
bass reflex via front-firing port,
1 paper cone woofer Onkyo W-2025A 8Ω 200mm, butyl surround,
1 paper cone midrange Onkyo MD-1212A 8Ω 120mm, butyl surround,
1 paper cone tweeter Onkyo TW-508G 4Ω 50mm,
3-steps High Range Level,
20-40W@8Ω,
45-20000 Hz,
sens. 100dB/W/0,5m,
mm 322x534x290, kg 10,0.


25 Jun 2015

Onkyo TA-2430







Specs
2 heads,
2 DC servo motors (chip controlled),
3 digit counter,
Dolby B-C NR,
L+R mic in,
Nichicon VX, Sanyo components,
Accubias,
ACMS, repeat,
No 20-15000 Hz (30-14000 Hz ±3 dB),
CrO2 20-16000 Hz (30-15000 Hz ±3 dB),
Me 20-17000 Hz (30-16000 Hz ±3 dB),
S/N 58 dB (Me, Dolby off), 78 dB (Me, Dolby on, 5 kHz),
W&F 0,06% (wrms),
mm 435x112x262, kg 4,1.


13 Dec 2013

Onkyo A-9211






Specs
2x40W@8Ω/20-20000Hz,
2x2 Toshiba A1940 C5197 power transistors,
2x6800µF Nichicon Gold Tune filter caps,
Panasonic, Nichicon components,
phono mm.
mm 435x120x331, kg 6,7.


16 Oct 2013

Onkyo TA-2058 Integra (outside only)






Specs
3 heads,
3 motor,
full logic,
wired remote,
4 digit linear counter,
Dolby B-C NR HX Pro,
micro in,
No 20-17000Hz (30-16000Hz ±3dB),
CrO2 20-18000Hz (30-17000Hz ±3dB),
Me 20-19000Hz (30-18000Hz ±3dB),
S/N 60dB (Me, Dolby off), S/N 80dB (Me, 5kHz, Dolby C),
W&F (wrms) 0,045%.
mm 435x112x360, kg 6,1.


5 Sept 2012

Onkyo TA-2570 Integra












Specs
3 heads,
3 motor,
Full Logic,
remote,
4 digit r/t counter,
Dolby B-C NR HX Pro,
Fe 20-17000 Hz (30-16000 Hz ± 3dB),
CrO2 20-18000 Hz (30-17000 Hz ± 3dB),
Me 15-21000 Hz (20-20000 Hz ± 3dB),
S/N >60 dB (Dolby off),
W&F (wrms) 0,035%,
mm 435x132x366, kg 7,5.
