22 Feb 2023

Parasound HCA-1206




Specs
6x135W@8Ω/20-20000Hz,
6x200W@4Ω/20-20000Hz,
2x350W@8Ω/20-20000Hz bridged,
30A peak/ch,
1700VA toroidal power transformer,
12x2 Sanken A1294 C3263 power transistors,
120000µF filter capacity,
Rubycon, Yec components,
3 pair speakers out,
bridge,
ch level,
mm 483x178x470, kg 32,2.


18 Feb 2023

NAD 2400 (Monitor Series)


Specs
2x100W@8Ω/20-20000Hz,
4x2 Toshiba 2SA1516 2SC3907 power transistors,
4x10000µF Shoei filter caps,
Nippon Chemicon SME, Shoei, Dale components,
2 pair speakers out,
bridge, Soft Clipping,
L & R level,
mm 435x121x381, kg 10,0.


25 Dec 2022

McIntosh MC2205


Specs
2x200W@1-8Ω/20-20000Hz,
8x2 Motorola / Rca power transistors,
2x39000µF General Electric filter caps,
Ero, Nichicon, Nippon Chemicon, Roe components,
McIntosh Output Autotransformers,
McIntosh Power Guard,
1 pair speakers out,
L & R vu meters power indicator,
L & R level,
0,75V - 2,5V input level,
1 ac outlet,
Panloc mounting,
mm 411x181x369, kg 38,6.
Similar: McIntosh MC2200 (without vu meters).


7 Mar 2021

PS Audio Trio A-100






Specs
2x100W@8Ω/20-20000Hz,
2x200W@4Ω/20-20000Hz,
2x B&O ICEpower 200ASC power amp board (class D),
smd components,
Elna RJB / RJF, Rifa components,
rca / xlr,
dual mono,
mono bridge,
mm 215x75x390, kg 3,2.


20 Dec 2020

Yamaha M-40




Specs
2x120W@8Ω/20-20000Hz class AB,
2x175W@4Ω/20-20000Hz class AB,
2x10W@8Ω/20-20000Hz class A,
4x2 Sanken A1106 C2581 power transistors,
2x22000µF Nichicon filter caps,
Rubycon Black Gate F, Nichicon, Rubycon, Teapo  components,
L & R volume,
auto class A,
mm 435x165x425, kg 14,0.


6 Sept 2020

Quad 405




Specs
2x100W@8Ω/20-20000Hz,
4x 2SD424 Toshiba power transistors,
2x10000µF ITT filter caps,
ITT, Rca, Roe components,
dual core power transformer,
mm 340x115x195, kg 9,0.


15 Jun 2020

Trends Audio TA-10.2P




Specs
2x6W@8Ω/20-20000Hz,
2x10W@4Ω/20-20000Hz,
1 Tripath TA2024 stereo amplifier chip (class T),
2x1800µF/16v Rubycon MCZ el. caps,
smd components, mkp caps,
Rubycon MCZ, Trends components,
dynamic range 98 dB,
mm 76x46x114, kg 0,5.


29 Jul 2018

Technics SC-CA1080
(ST-CA1080 SE-CA1080 SL-CA1060 RS-CA1060 SB-CA1060)







Specs
Technics SC-CA1080
|
Technics ST-CA1080 (ST-CA1080EGK) preamplifier/tuner/timer
fm/mw/lw,
Panasonic Pureism / AU, Elna, Tk components,
DPL,
mm 280x89x287, kg 1,8.
|
Technics SE-CA1080 (SE-CA1080EGK) power amplifier
2x60W@6Ω/20-20000Hz,
1x Panasonic RSN3403 power(pack) ic,
2x8200µF Panasonic Audio filter caps,
Panasonic, Elna, Tk components,
Technics RAK-CH729WH remote,
mm 280x119x332, kg 5,9.
|
Technics SL-CA1060 (SL-CA1060E-K) cd player
2 dac 1bit MASH conversion,
Panasonic MN6627IRA dac / filter,
Panasonic transport / pickup,
Panasonic CE / HFQ, Elna, Tk components,
mm 280x89x267, kg 2,2.
|
Technics RS-CA1060 (RS-CA1060E-K) cassette deck
1 head (deck 1*; P: permalloy), 2 heads (deck 2°; R/P: permalloy; E: double-gap ferrite),
1 DC servo motor (capstan drive)*°, 1 DC motor (reel table drive)*°,
Dolby B-C NR,
dual capstan *°, auto reverse,
motorized tape loading,
Panasonic CE, Elna, Tk components,
No 30-15000 Hz (+0 -7 dB, din),
CrO2 30-17000 Hz (+0 -7 dB, din),
 Me 30-19000 Hz (+0 -7 dB, din),
S/N 56 dB (Dolby off), 66 dB (Dolby B), 74 dB (Dolby C),
W&F  < 0,1% (wrms),
mm 280x119x265, kg 2,8.
|
Technics SB-CA1060 loudspeakers
3-way configuration,
closed box,
paper cone midwoofer Panasonic EAS8P323B6, textile surround,
dome tweeter Panasonic EAS25KH323A6,
paper cone subwoofer Panasonic 14PL316C6 155mm, foam surround,
Panasonic EAS18SY29A passive radiator,
60W@6Ω,
**-**000Hz ±* dB,
sens. ** dB,
mm 210x420x290, kg *,*.


3 Jun 2018

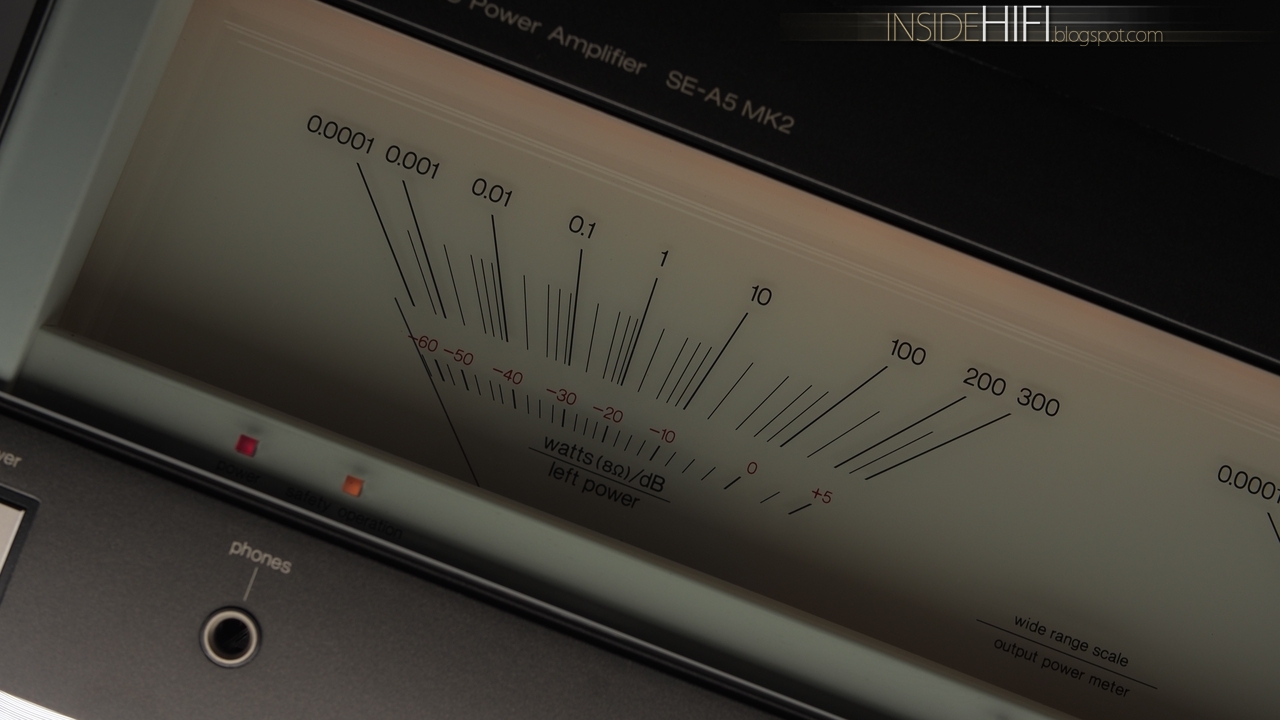

Technics SE-A5MK2 (SE-A5MK2-KEI)







Specs
2x150W@8Ω/20-20000Hz,
2x150W@4Ω/20-20000Hz,
4x2 Toshiba 2SA1301 2SC3280 power transistors,
4x8200µF Panasonic filter caps,
Panasonic SU components,
L / R input level,
mm 430x178x416, kg 18,4.


8 Feb 2018

Adcom GFA-545 II




Specs
2x100W@8Ω/20-20000Hz,
2x150W@4Ω/20-20000Hz,
6x2 Sanken C3856 A1492 power transistors,
4x10000µF Rubycon filter caps,
Panasonic HC, Ero components,
toroidal power transformer,
L & R distortion peak indicators,
mm 432x138x310, kg 11,0.


1 Feb 2018

Famco Plénitude (YBA)



Specs
2x90W@8Ω/20-20000Hz,
2x2 Motorola MJ15003 MJ15004 power transistors,
4x4700µF Roe filter caps,
Roe, Ero, Wima, ITT, Siemens components,
dual core transformer,
mm 410x88x280, kg 12,0.


4 Jan 2018

Technics SE-M100 (SE-M100E5-K)






Specs
2x125W@8Ω/20-20000Hz,
2x175W@4Ω/20-20000Hz,
4x2 Toshiba A1265 C3182 power transistors,
4x10000µF Technics Hi-Speed EX II filter caps,
Panasonic Pureism PX, Panasonic PU / SU components,
4 dac 20bit/48kHz conversion,
BurrBrown PCM56P / NPC SM5813AP dac / filter,
1 coax in,
2 opt in,
2 rca fix + var analog in,
2 power transformer,
mm 430x161x403, kg 16,5.


12 Mar 2017

Yamaha M-4





Specs
2x120W@8Ω/20-20000Hz,
2x170W@4Ω/20-20000Hz,
4x2 Toshiba 2SC2460 2SA1050 power transistors,
2x15000µF Nippon Chemicon filter caps,
Nippon Chemicon SL, Panasonic CE, Elna components,
2 pair speakers out,
L & R power indicators,
L & R level,
mm 435x145x374, kg 18,5.


13 Dec 2016

Musical Fidelity P140




Specs
2x70W@8Ω/20-20000Hz,
2x2 Hitachi 2SJ50 2SK135 power transistors,
4x6800µF Rubycon filter caps,
Rubycon, ICW, Ero, Evox components,
toroidal power transformer,
2 line in,
2-steps sensibility,
mm 408x70x250, kg 6,5.


19 Oct 2016

Philips Flat Line (AH 070, AH 270, AH 370, AH 170)





Specs
|
Philips AH 070 switch unit
|
Philips AH 270 preamplifier
|
Philips AH 370 power amplifier
|
Philips AH 170 tuner

Philips AH 370 (22AH370/00)





Specs
2x60W@8Ω/20-20000Hz,
2x70W@4Ω/20-20000Hz,
2x2 Hitachi 2SB654 2SD674 power transistors,
2x10000µF Nippon Chemicon filter caps,
Nippon Chemicon SL components,
toroidal power transformer,
2 pair speakers out,
L & R power indicators,
L & R volume,
mm 482x75x340, kg -,-.
