31 Mar 2023

JBL Ti1000





Specs
2-way configuration,
bass reflex via rear-firing port,
Aquaplas cone woofer JBL 706G 165mm, rubber surround, 37mm voice coil,
 titanium dome tweeter JBL 050Ti 25mm,
50-150W@4Ω,
50-30000Hz ±6 dB,
sens. 89 dB,
mm 265x450x235, kg 16,0.


26 Dec 2017

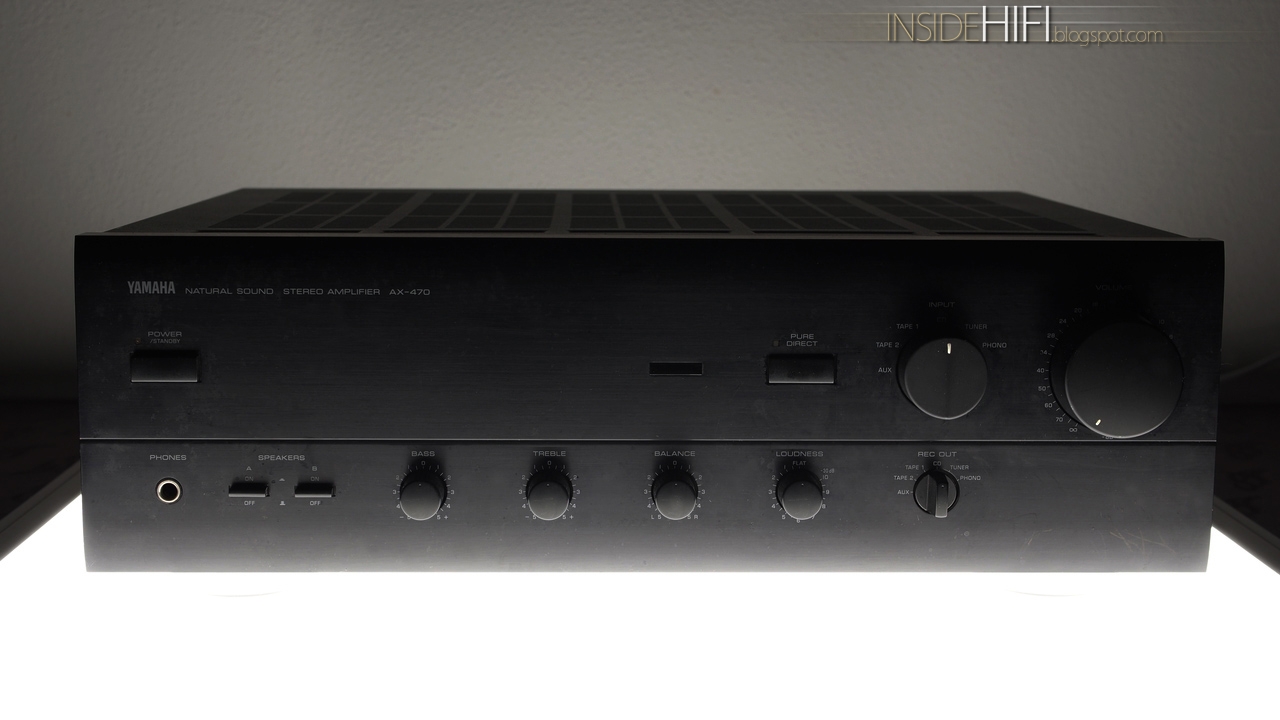

Yamaha AX-470



Specs
2x65W@8Ω/20-20000Hz,
2x2 A1491 C3855 power transistors,
2x6800µF Elna For Audio filter caps,
Nichicon Muse, Elna Duorex II, Elna components,
remote,
pure direct,
phono mm,
mm 435x150x389, kg 9,5.


25 Sept 2016

29 Dec 2015

Aiwa XT-005 (XT-005E)




Specs
fm/mw/lw,
36 preset,
2 AC outlets (switched/unswitched),
Nippon Chemicon SM / SME, Nichicon VX, Elna components,
mm 430x100x297, kg -,-.


22 Aug 2015

Heil AMT Aulos













un'altra coppia di Aulos, produzione successiva:





Specs
2-way configuration,
bass reflex via two front-firing ports,
treated paper cone midwoofer Vifa M18WO-09-08 165mm,
(magnesium chassis, rubber surround, 40mm voice coil on Kapton former),
tweeter/midrange AMT 2 Heil 100x80mm,
(effective diaphragm 54cm², time-aligned),
50-200W@4-8Ω,
40-23000Hz ±3 dB,
sens. 89 dB,
mm 230x500x300, kg 8,7.


18 Jan 2015

Teac V-3010









Specs
3 heads (cobalt-amorphous),
2 DC motor,
full logic,
Teac RC-393 remote,
4 digit counter,
Dolby B-C NR HX Pro, mpx,
anti-static stabilizer,
Panasonic AU, Panasonic Pureism components,
No 15-18000 Hz ±3 dB,
CrO2 15-20000 Hz ±3 dB,
Me 15-21000 Hz ±3 dB,
S/N 58 dB (Dolby off), 80 dB (Dolby C),
W&F 0,045% (wrms),
mm 435x149x355, kg 7,0.
