Thursday, 16 February 2017

Philips F4134 (F4134/00S)




Specs
2x35W@8Ω/20-20000Hz,
4x PH BDT96A (?) power transistors,
2x6800µF Roe EGD filter caps,
Philips, Philips mkt, Panasonic CE components,
DIN 41529 speakers out (2 pairs),
phono mm,
mm 420x79x300, kg 4,7.


Philips F2131 (F2131/00S)




Specs
fm/mw/lw,
Philips, Philips mkt, Panasonic CE components,
15V power supply from matching amplifier,
mm 420x58x234(274), kg -,-.


Wednesday, 8 February 2017

Luxman FQ 900







Specs
fm/am tuning,
2x50W@8Ω/20-20000Hz,
4x Nec 2SD218 power transistors,
2x3300µF Nippon Chemicon W filter caps,
Sanyo, Nippon Chemicon W, Murata components,
2x phono mm RIAA,
3 ac outlets (2 unswitched, 1 switched),
mm ---x---x---, kg 17,0.
Similar: Luxman FQ 990.


Sunday, 5 February 2017

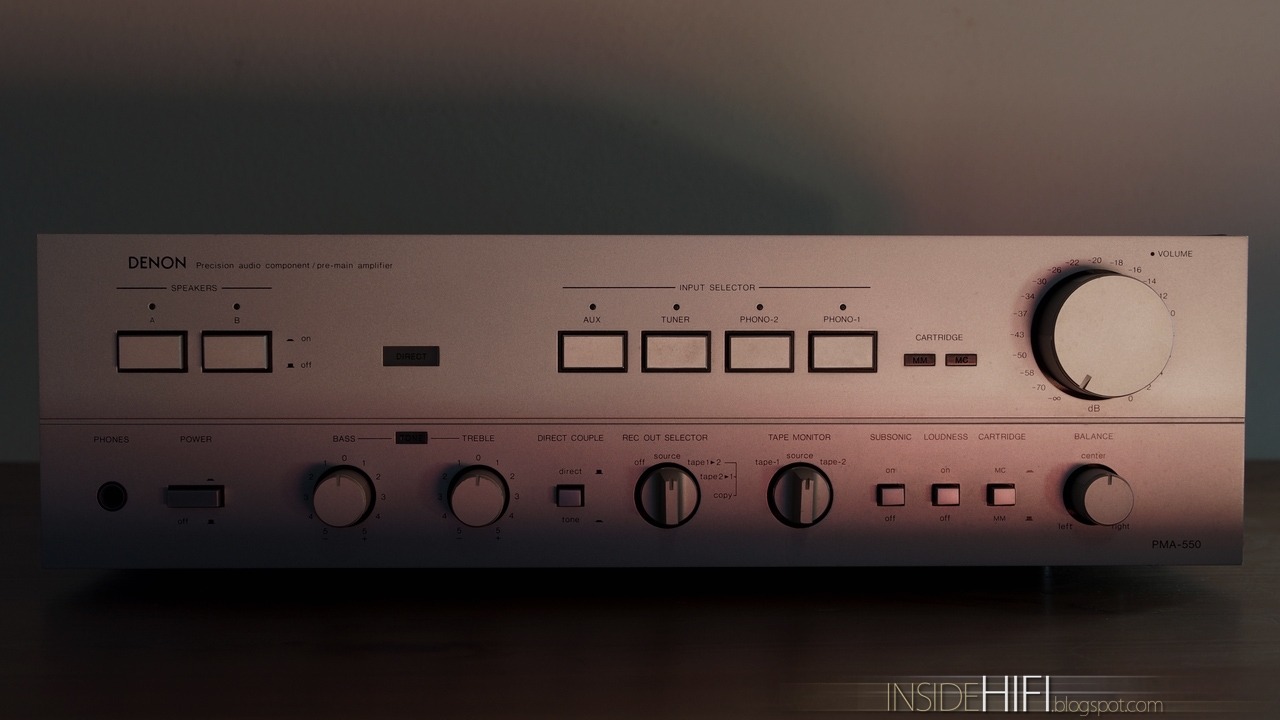

Denon PMA-550





Specs
2x100W@8Ω/20-20000Hz,
2x2 Toshiba 2SA1146 2SC2706 power transistors,
2x22000µF Nippon Chemicon filter caps,
Nippon Chemicon, Elna components,
toroidal power transformer,
phono mm/mc,
mm 434x132x407, kg 13,5.


Saturday, 4 February 2017

Cambridge Audio 540P





Specs
mm,
2x TI NE5532P op amps,
Acon (?), Xunda (?), Lh.Nova (?) components,
mm 215x46x133, kg 0,8.


Friday, 3 February 2017

Sony CDP-790 (E Model)





Specs
1bit Pulse conversion,
Sony CXD2552Q / CXD2554P dac / filter,
Sony KSS-240A transport / pickup,
Elna components,
Sony RM-D490 remote,
S/N ≥ 102 dB,
dynamic range ≥ 97 dB,
channel separation ≥ 100 dB,
20-20000 Hz ± 0,3 dB,
harmonic distortion ≤ 0,003%,
mm 430x110x280, kg 4,5.
Similar: Sony CDP-209ES (US Model).


Thursday, 2 February 2017

LM3886 based amp






Specs
2x40W@8Ω/20-20000Hz,
2x National LM3886TF amplifier chip (class AB),
4x4700µF Nichicon VZ filter caps,
Samyoung, Samwha WF, Nichicon components,
60VA toroidal power transformer,
220V supply,
dynamic range -- dB,
mm 115x50x220(250), kg 1,8.


Philips CD 303 (CD303/00)







Specs
14bit conversion,
2 x Philips TDA1540D / SAA7030 dac / filter,
Philips CDM-0 transport / pickup,
Philips, Nichicon, Elna components,
S/N ≥ 90 dB,
dynamic range ≥ 90 dB,
channel separation ≥ 86 dB,
20–20000 Hz ± 0,5 dB,
harmonic distortion ≤ 0,005%,
mm 420x80x300, kg 8,0.
Similar: Philips CD 300 (without display).
