Saturday, 29 August 2015

Sony CDP-X55ES (E Model)









Specs
1bit conversion,
  C-Pulse CXD2552Q-2 – CXD1244 dac / filter,
Sony BU-6C / Sony KSS-270A transport / pickup,
Nippon Chemicon SME / ASF / AVF / AWF, Elna, Nichicon components,
2 power transformers,
Sony RM-D590 remote,
S/N > 115 dB,
dynamic range > 100 dB,
2–20000 Hz ± 0,3 dB,
harmonic distortion < 0,0018%,
channel separation > 110 dB,
mm 470x125x375, kg 11,5.


Friday, 28 August 2015

France Electronique FE Internationale 2500





Specs
2 heads,
1 motor,
soft touch,
3 digit counter,
Dolby NR,
L+R mic in,
Rubycon, Elna, Facon, Elite components,
No **-**000 Hz,
CrO2 **-**000 Hz,
S/N ** dB (Dolby off), ** dB (Dolby on),
W&F *,**% (wrms),
mm ***x***x***, kg *,*.
Similar: Europhon, Emerson, Teleton.


Wednesday, 26 August 2015

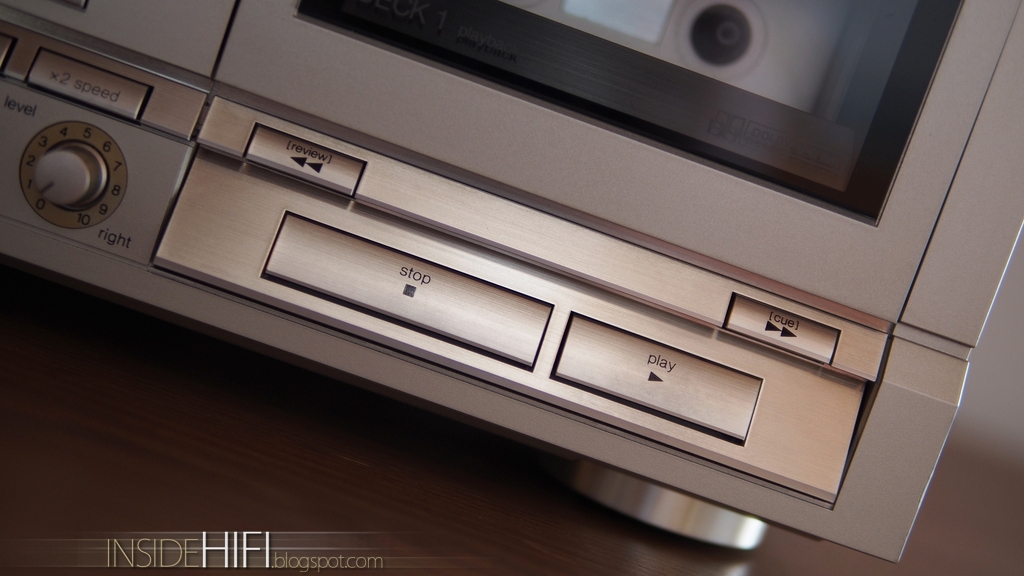

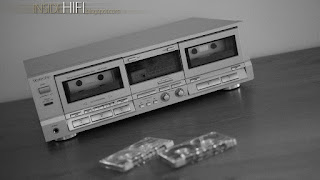

Technics RS-TR165 (RS-TR165EG-S)









Specs
2 heads (deck 2*; R/P: MX permalloy; E: double-gap ferrite), 1 head (deck 1°; P: MX permalloy),
2 DC servo motors*°,
full logic,
auto reverse*, synchro dubbing x1 x2 speed,
3 digit counter,
Dolby B-C NR,
Panasonic SU / CE components,
No 20-16000 Hz,
CrO2 20-16000 Hz,
Me 20-18000 Hz,
S/N 56 dB (Dolby off), 66 dB (Dolby B), 74 dB (Dolby C),
W&F 0,07% (wrms),
mm 430x136x290, kg 4,8.


Saturday, 22 August 2015

Heil AMT Aulos













un'altra coppia di Aulos, produzione successiva:





Specs
2-way configuration,
bass reflex via two front-firing ports,
treated paper cone midwoofer Vifa M18WO-09-08 165mm,
(magnesium chassis, rubber surround, 40mm voice coil on Kapton former),
tweeter/midrange AMT 2 Heil 100x80mm,
(effective diaphragm 54cm², time-aligned),
50-200W@4-8Ω,
40-23000Hz ±3 dB,
sens. 89 dB,
mm 230x500x300, kg 8,7.
