Sunday, 22 June 2014

Arcam CD73









Specs
24bit delta sigma conversion,
Wolfson WM8740 dac / filter,
Sony KSS-213 transport / pickup,
2x 2114D, TL072CP op amp,
Elna, Rubycon, Nichicon Fine Gold, Elna Silmic / Cerafine, Wima components,
toroidal power transformer,
S/N ≥ 112 dB,
dynamic range ≥ ** dB,
channel separation ≥ *** dB,
0,3–20000 Hz ±0,5 dB,
harmonic distortion ≤ 0,003% @ 1kHz,
mm 430x85x290, kg 4,6.
Remote: Arcam CR224.


Saturday, 14 June 2014

Sony TA-1055








foto noa:






Specs
2x23W@8Ω/20-20000Hz,
4x Hitachi C1061 power transistors,
2x3300µF Nippon Chemicon filter caps,
Nichicon, Nippon Chemicon components,
phono mm RIAA,
mm 410x120x280, kg 6,2.

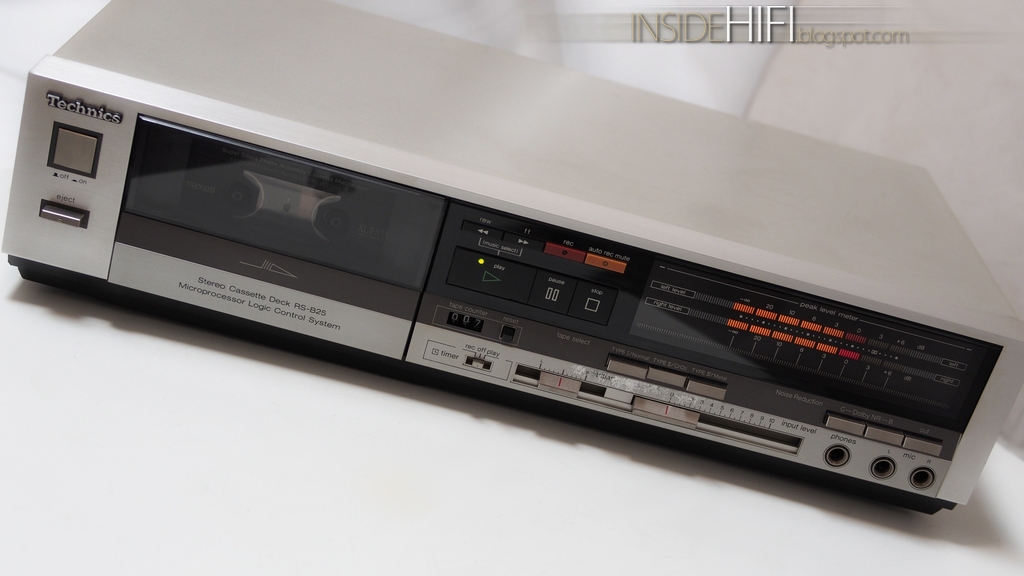

Technics RS-B25 (RS-B25-SE)






Specs
2 heads (R/P: MX, E: Ferrite),
2 motor,
soft touch,
3 digit counter,
Dolby B-C NR,
Panasonic SU components,
No 20-16000 Hz,
CrO2 20-17000 Hz,
Me 20-17000 Hz,
S/N 67 dB (Dolby B), 75 dB (Dolby C),
W&F 0,07% (wrms),
mm 430x100x229, kg 3,4.

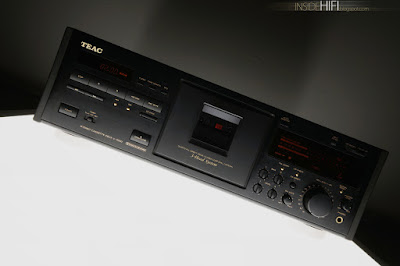

Teac V-7000

immagine internet


Specs
3 heads,
4 DC motor,
full logic,
RC-394 remote,
4 digit counter,
Dolby B-C NR HX Pro, mpx,
motorized tape loading,
Panasonic AU, Panasonic Pureism components,
No 15-18000 Hz ±3 dB (-20dB vu),
CrO2 15-20000 Hz ±3 dB (-20dB vu),
Me 15-21000 Hz ±3 dB (-20dB vu),
S/N 60 dB (Dolby off), 80 dB (Dolby C),
W&F 0,022% (wrms),
mm 471x149x355, kg 9,0.


Friday, 13 June 2014

Micromega Stage 1




Specs
1bit bitstream conversion,
Philips TDA1305T dac / filter,
Philips CDM12.4/05 transport / pickup,
2 x NE5532P, NE5534P, 4560D op amp,
Marcon, Panasonic, Philips, Wima components,
Acutrans circuit,
S/N ≥ *** dB,
dynamic range ≥ ** dB,
channel separation ≥ *** dB,
*–**000 Hz ±0,5 dB,
harmonic distortion ≤ 0,0***%,
mm 430x88x280, kg 4,4.
